Houston low-e window coatings are the single most important specification on a residential window in this climate, and they are also the specification that gets glossed over the fastest during a sales conversation. A homeowner shopping windows in Houston is not really shopping frames or shopping brands. They are shopping the coating, the gas fill, and the spacer that sit inside the insulated glass unit, because those three components decide how the window performs against the summer heat and against the utility bill.
The DC Pines Education Center put this post together to explain what a low-e coating actually is, why the difference between soft-coat and hard-coat matters in a hot climate, why the surface the coating sits on changes the performance profile, and how the coating interacts with the SHGC and U-factor numbers on the NFRC label. It is a homeowner-education primer, not a product pitch, and it complements the existing Houston NFRC label guide.
What a Low-E Coating Actually Is
Low-emissivity, abbreviated low-e, is a microscopically thin metallic or metallic-oxide film applied to the surface of glass inside an insulated glass unit. The coating is thinner than a human hair and is virtually invisible to the eye, but it changes how the glass handles radiant heat. Long-wave infrared, which is the heat radiating from warm surfaces like an asphalt driveway or a sun-heated brick wall, is reflected back toward its source rather than passed through the glass. Visible light continues to pass, so rooms remain bright.
Independent education material from the NFRC Consumer Guide to Windows summarizes the practical effect: low-e coatings can reduce the energy loss associated with windows by as much as 40%, improve occupant comfort, and reduce fabric and flooring damage caused by ultraviolet light. Those three effects are the payoff of the coating, and they show up on every well-specified Houston window regardless of frame material or brand.
Soft-Coat vs Hard-Coat: Why It Matters in Houston
Two manufacturing methods produce low-e glass. Soft-coat, also called sputtered coat, is deposited on the glass after manufacturing in a vacuum chamber and consists of multiple metallic layers stacked in sequence. Hard-coat, also called pyrolytic coat, is applied while the glass is still hot during production and bonds directly to the glass surface as a single metal-oxide layer.
In a hot climate the two are not interchangeable. Soft-coat delivers substantially lower emissivity and much stronger solar heat control, which is why it is the coating found on ENERGY STAR Southern-Climate windows. Hard-coat is more physically durable and can survive single-lite secondary-window use where the coated surface is exposed to handling, but its solar performance profile is less aggressive. For a sealed Houston insulated glass unit where the coating sits protected inside the air space, soft-coat is the correct default answer.
Surface Position: The Number That Nobody Explains
A residential dual-pane insulated glass unit has four glass surfaces. Numbered from the exterior in, surface 1 is the outside face of the outer pane, surface 2 is the interior face of the outer pane, surface 3 is the exterior face of the inner pane, and surface 4 is the interior face of the inner pane. Where the low-e coating sits on those four surfaces changes what the coating does.
For a hot-climate configuration appropriate to Houston, soft-coat low-e is typically placed on surface 2. That position lets the coating reflect solar heat before it enters the sealed air space between the panes, which keeps the interior pane cooler and reduces radiant heat gain into the room. A cold-climate configuration often places the coating on surface 3 instead, because in that case the goal is to bounce interior heat back into the house. A homeowner reviewing a Houston window quote should confirm the coating position, not just the presence of a coating.
How the Coating Shows Up on the NFRC Label
The NFRC label is the outward evidence of the coating and fill choices inside the insulated glass unit. Solar Heat Gain Coefficient is the number most directly affected by a hot-climate low-e coating, and in Houston a Southern-Climate ENERGY STAR window will typically land at an SHGC of about 0.25 or lower, meaning the assembly rejects roughly three-quarters of the incoming solar heat. U-factor is affected too, but Houston is a cooling-dominated climate, so SHGC carries more weight in the buying decision than U-factor.
ENERGY STAR publishes the Southern-Climate performance thresholds directly in its residential windows key product criteria. A homeowner comparing quotes should be able to point to the NFRC label on each proposal and see the SHGC number sitting at or below that threshold. If the coating is right and the fill and spacer are right, that number appears without any additional homeowner effort.
Common mistakes when replacing Houston windows
The DC Pines Education Center sees the same three mistakes repeated across Houston window projects. First: picking a window on frame appearance alone and letting the salesperson choose the glass package. The glass carries the physics; the frame carries the aesthetic. Second: mixing northern-climate and southern-climate Low-E in the same home because the installer stocked what was on the truck. Third: skipping the installation details — the flashing, the caulk, the sill pan — and expecting a premium glass package to make up for a sloppy rough-opening seal.
A properly-specified Low-E window installed poorly performs worse than a mid-tier window installed carefully. The Education Center considers the install and the flashing detail as much a part of the product as the glass itself.
Is window film a shortcut?
Aftermarket solar film is a legitimate interim step for homeowners not yet ready for a full replacement, and it can reduce solar heat gain and glare on existing clear-glass windows meaningfully. What film cannot do is repair a fogged insulated glass unit, replace a failed seal, or salvage a rotting wood frame. Homeowners with windows already at the end of their service life get more long-term value from a Low-E replacement than from layering film over failing hardware. For those still on the fence about the whole system, the Education Center’s guide to Houston window warning signs covers the specific failure indicators to watch for.
Frequently Asked Questions
What is a low-e coating on a window?
A low-emissivity coating is a microscopically thin, transparent metallic-oxide layer applied to a glass surface inside an insulated glass unit. According to the NFRC Consumer Guide to Windows, low-e coatings can reduce window energy loss by as much as 40% by reflecting infrared heat while still allowing visible light to pass through the glass.
What is the difference between soft-coat and hard-coat low-e?
Soft-coat, or sputtered, low-e is deposited in a vacuum chamber after the glass is manufactured. It uses multiple ultra-thin metallic layers and delivers the strongest solar heat control and the lowest emissivity numbers, which is why it is the default choice for Houston-appropriate windows. Hard-coat, or pyrolytic, low-e is fused onto the glass during manufacturing while it is still hot. It is more durable to handling and can be used on single-lite secondary-window applications, but its solar heat performance is less aggressive than soft-coat.
Which surface of the glass gets the low-e coating in a hot climate?
In a residential dual-pane insulated glass unit, the four glass surfaces are numbered from the exterior inward: surface 1 is outside-facing, surface 2 is the interior side of the outer pane, surface 3 is the exterior side of the inner pane, and surface 4 is the interior-facing surface. For a hot climate like Houston, soft-coat low-e is typically placed on surface 2 so the coating reflects solar heat before it enters the air space between the panes. Cold-climate glazing often places the coating on surface 3 to keep interior heat inside.
Does a low-e coating make a window look tinted?
Modern soft-coat low-e coatings in an ENERGY STAR Southern-Climate configuration have a subtle blue-green cast in strong reflected light but appear nearly clear when viewed from inside the home. Visible light transmittance on a high-performance Southern-Climate low-e IGU is typically in the mid-fifties to low-seventies percent range, so rooms stay bright while blocking most of the invisible infrared solar energy.
Is triple-pane worth it in Houston?

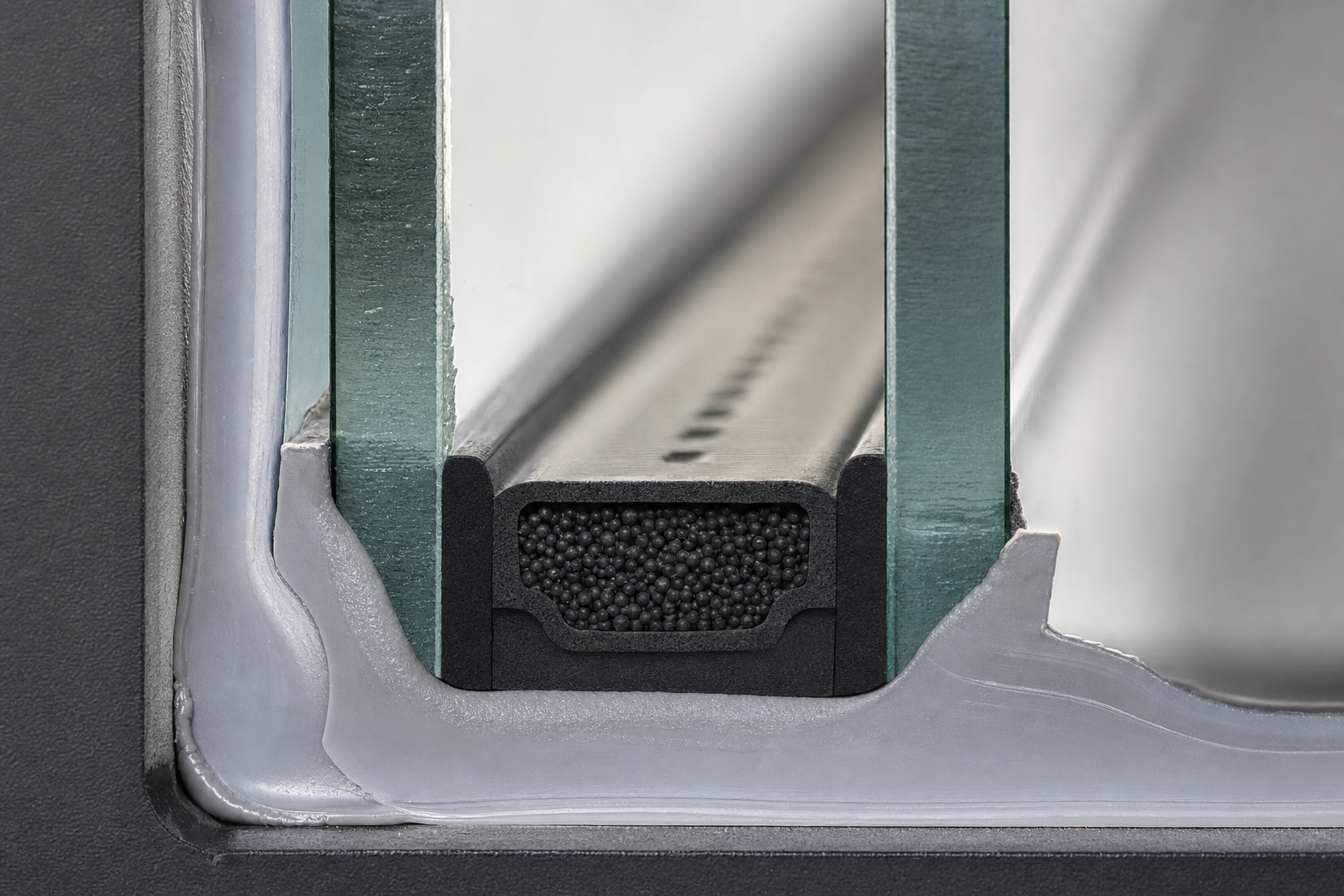

In most of Houston, no. A high-performance dual-pane insulated glass unit with soft-coat low-e on surface 2, argon fill, and a warm-edge spacer already reaches ENERGY STAR Southern-Climate performance targets. Triple-pane adds weight, cost, and frame depth, and the additional U-factor improvement matters most in northern climates where heating loads dominate. Houston is a cooling-dominated climate zone, so the priority is a strong SHGC, not the additional pane.
The Bottom Line
A Houston window is only as good as the low-e coating, the gas fill, and the spacer inside it. Soft-coat low-e on surface 2, argon fill, and a warm-edge spacer is a Houston-appropriate baseline specification, and everything else on a window quote sits downstream of those three choices. The frame material influences longevity and thermal bridging, the installation influences air leakage, and the price influences the purchase decision, but the coating decides whether the window is quietly rejecting Houston heat or quietly letting it into the living room. Homeowners who ask specifically about coating type, coating position, gas fill, and spacer are asking the right questions, and the NFRC label on the quote is where those answers show up in ink.
